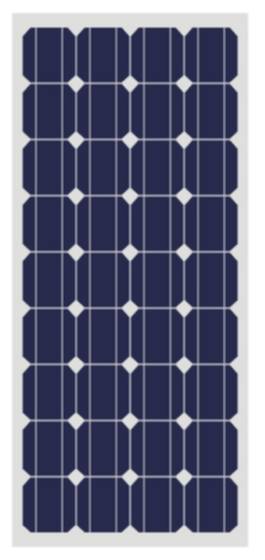

Xuyang90-18M
Maximum Power(W) 90 80 70
Optimum Power Voltage(Vmp) 17.57 17.57 17.57
Optimum Operatige Current(Imp) 5.12 4.55 3.98
Open Circuit Voltage(Voc) 21.6 21.6 21.6
Short Circuit Current(Isc) 5.48 4.87 4.26
Solar Cell: 125*125 Mono
Number of Cell(pcs) 4*9
Brand Name of Solar Cells Solar Cell
Size of Module(mm) 1200*550*40
Caple & Connector Type Pass the TUV Certificate
Frame(Material Corners,etc.) Aluminium-alloy
Backing (Brand Type) TPT
Cell Efficiency for 90W(%) 16
Weight Per Piece(KG) 9.7
FF (%) 70-76%
Junction Box Type Pass the TUV Certificate
Tolerance Wattage(e.g.+/-5%) ±5%
Front Glass Thikness(mm) 3.2
Temperature Coefficients of Isc(%)°C +0.04
Temperature Coefficients of Voc(%)°C -0.38
Temperature Coefficients of Pm(%)°C -0.47
Temperature Coefficients of Im(%)°C +0.04
Temperature Coefficients of Vm(%)°C -0.38
Temperature Range -40°C to +85°C
Surface Maximum Load Capacity 2400Pa
Allowable Hail Load 23m/s ,7.53g
Bypass Diode Rating(A) 12
Warranty 90% of 10 years,80% of 25 years.
Standard Test Conditions AM1.5 1000W/㎡ 25 +/-2°C
Packing
1*20' 24Pallets/648pcs
1*40'STD 54Pallets/1458pcs
